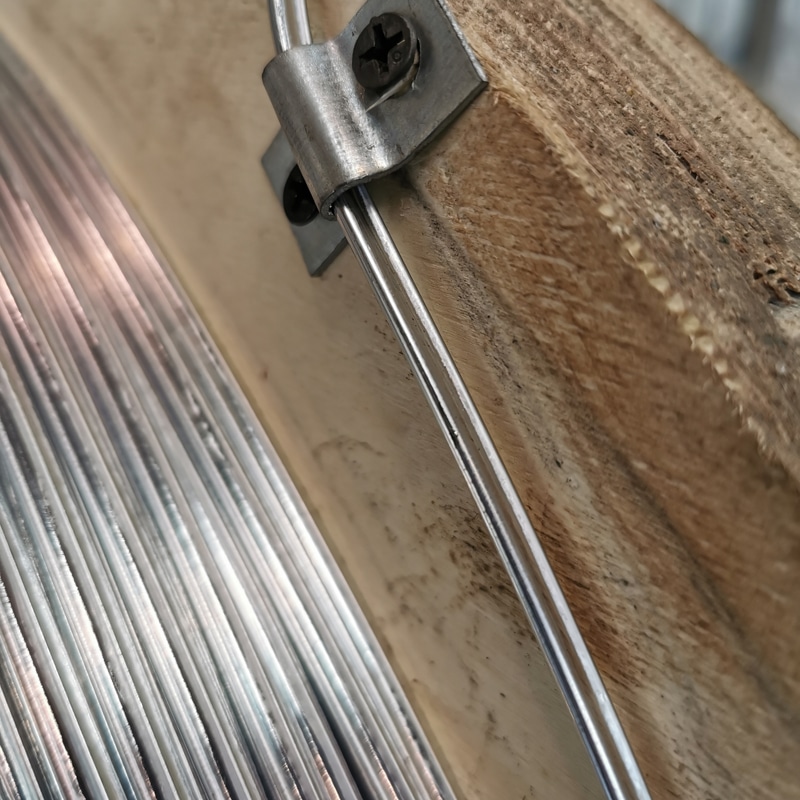

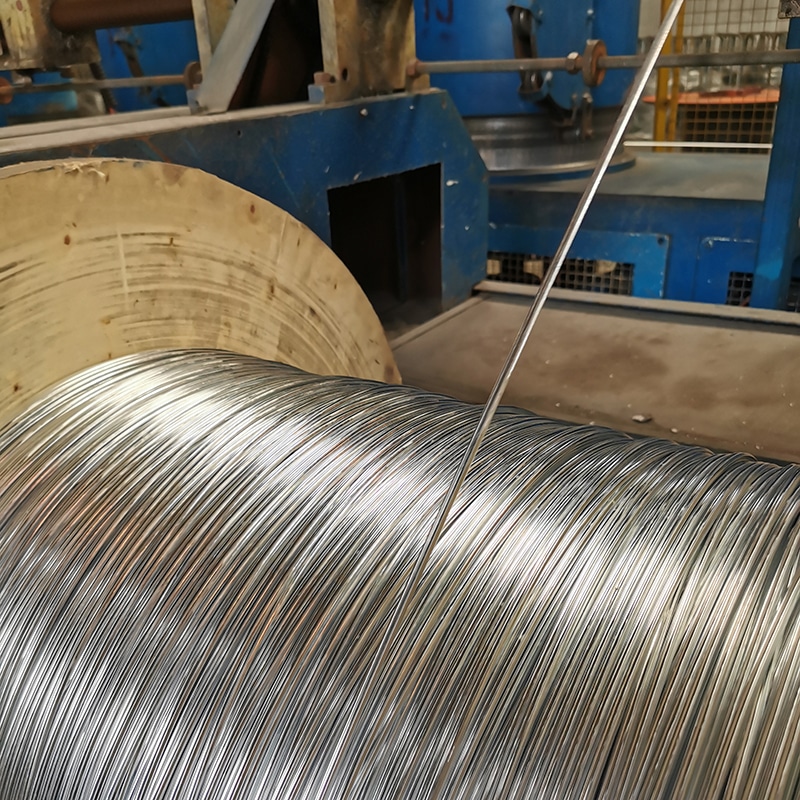

‘Z’ shaped wire for Full-locked coil rope

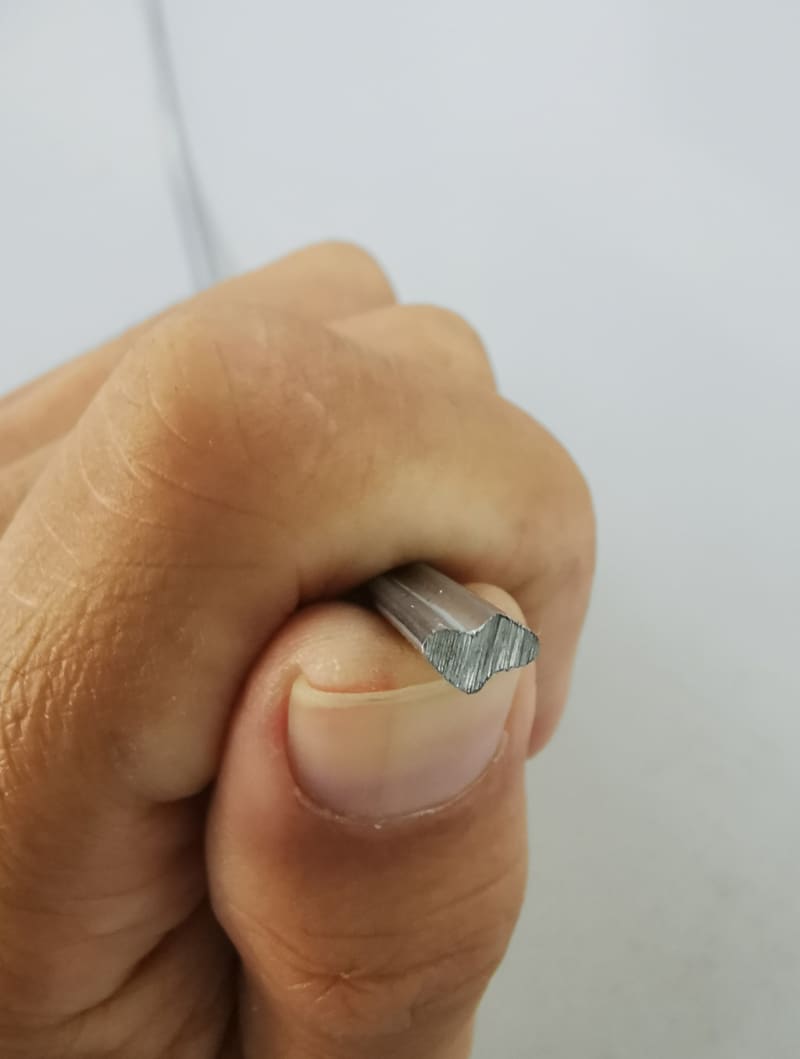

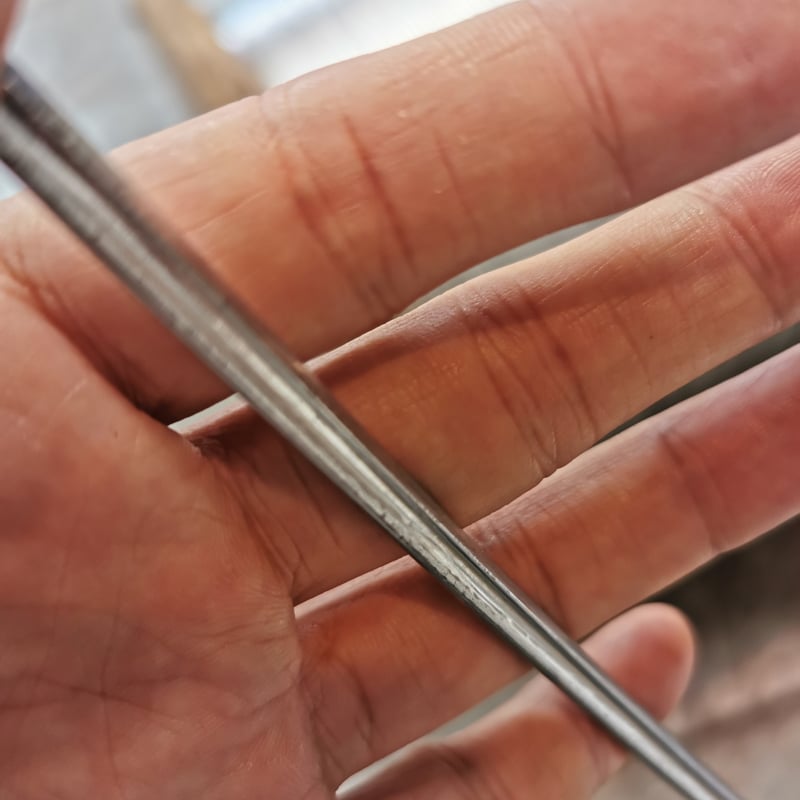

Z-shaped or named as Z-profiled wire is used for the outer layers of Full-locked coil rope.

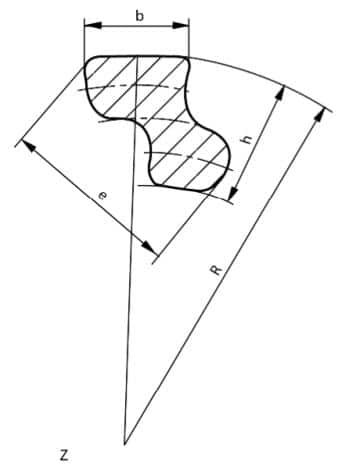

The designation of a full lock wire is established using the letter ‘Z’ and the height (h)

According to DIN EN 10264-3 stranded.

Size range: H2 to H6 mm

Tensile strength: 1370Mpa up to 1770Mpa

Dimensional tolerances for Z Profile wire

Nominal dimension (height of profile) h	Dimensional tolerance
	Bright or coated — Class B or D	Coated –Class A
2.0≤h＜3.0	±0.08	Waist: +0.25 / -0.05 Height, head, heel: +0.15/ 0
3.0≤h＜5.0	±0.10	Waist: +0.25 / -0.05 Height, head, heel: +0.15/ 0
5.0≤h≤8.0	±0.12	Waist: +0.25 / -0.05 Height, head, heel: +0.15/ 0

Minimum mass of coating of Z profile wire

Nominal dimension ^a mm	Minimum mass of coating ^b g/m²
Nominal dimension ^a mm	Class B	Class A	Class D
2.0≤h＜2.5	115	215	45
2.5≤h＜3.2	125	245	50
3.2≤h＜4.0	135	265	60
4.0≤h＜5.0	135	275	70
5.0≤g≤8.0	150	290	80
dimension ^a: dimension of coated wire before removal of the coating. coating ^b: means zinc of Zn95/Al5 (Galfan) alloy.
