Steel wire for rope
Application: for production the steel wire ropes, the wire after the heat treatment process.
Diameter: from 0.20 mm up to 5.50 mm.

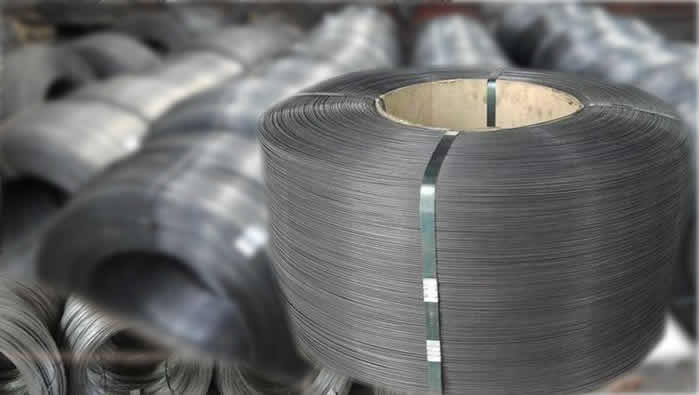

Coating: without coating, Phosphated or galvanized.
Standard:
DIN 2078 – Zinc coating has the following thickness groups: Un-galvanized; Galvanized; Hard galvanized.
EN 10264-2 – Zinc coating has the following thickness groups: Un-galvanized; Galvanized acc. to class B.
MECHANICAL PROPERTIES acc. to DIN 2078:
| Diameter
mm |
Tensile strength N/mm2 |
||
|
Un-galvanized – Bk |
Galvanized – noZn |
Hard galvanized – diZn |
|
| 0.20-0.26 | 1570 -1960 | 1570-1960 | – |
| 0.28-0.32 | 1570 -1960 | 1370 -1960 | – |
| 0.34-0.63 | 1370 -1960 | 1370 -1960 | – |
| 0.65-1.25 | 1370 -1960 | 1370 -1960 | 1370 -1770 |
| 1.26-1.70 | 1370 -1960 | 1370 -1960 | 1370 -1770 |
| 1.75-2.00 | 1370 -1960 | 1370 -1960 | 1370 -1770 |
| 2.05-3.60 | 1370 -1960 | 1370 -1960 | 1370-1570 |
| 3.65-3.90 | 1370 -1960 | 1370 -1570 | 1370-1570 |
| 4.00-5.40 | 1370 -1770 | – | – |
| 5.50-6.00 | 1370-1570 | – | – |
MECHANICAL PROPERTIES acc. to EN 10264-2:
| Diameter
mm |
Tensile strength N/mm2 |
|
| Un-galvanized | Galvanized
(class B) |
|
| 0.40-0.63 | 1370-2160 | 1370-1960 |
| 0.65-1.25 | 1370-2160 | 1370-1960 |
| 1.26-1.70 | 1370-2160 | 1370-1960 |
| 1.75-3.60 | 1370-1960 | 1370-1770 |
| 3.65-3.90 | 1370-1960 | – |
| 4.00-5.40 | 1370-1770 | – |
| 5.50-6.00 | 1370-1570 | |

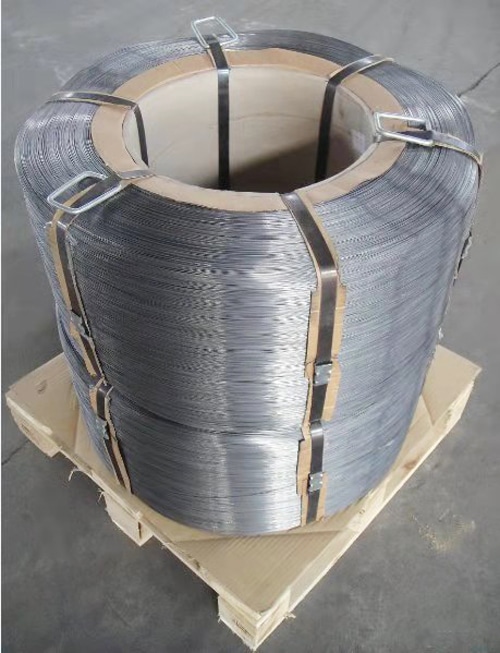

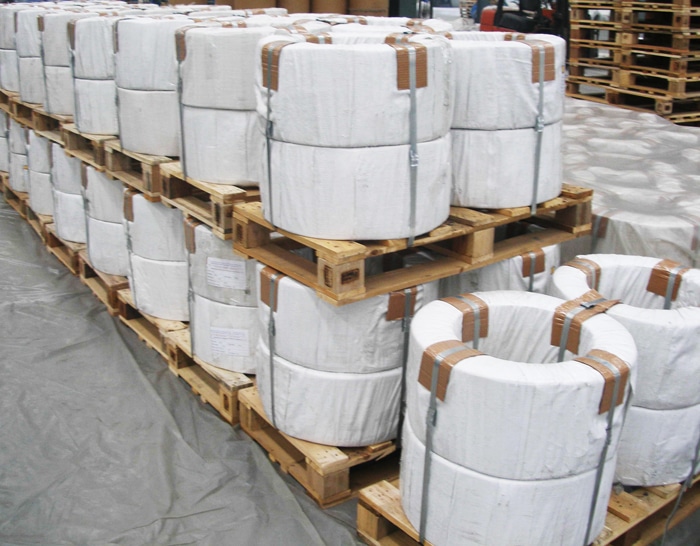

Packing:
0.2-0.65mm in small coils or on spools;

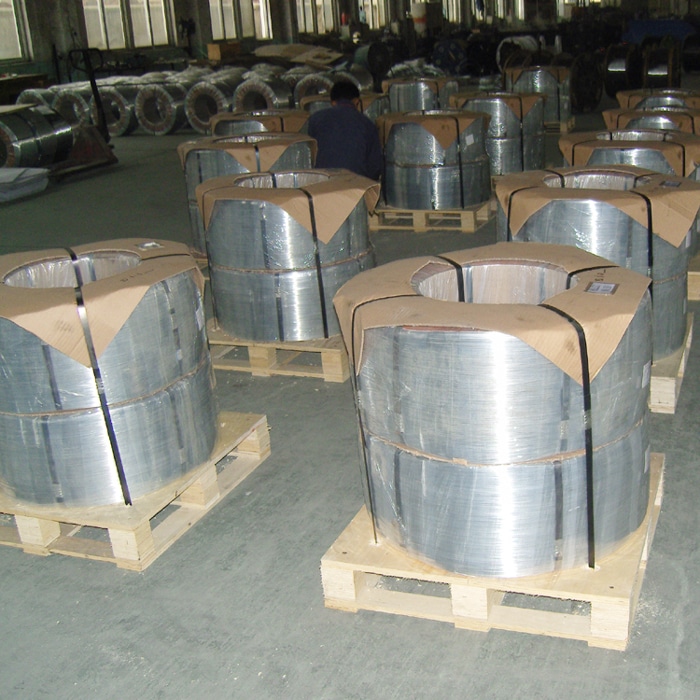

0.6-1.3mm in small coils or in Z2 coils;
1.3-3.0mm in coils with weight 100-150 kg or in coils Z2;
2.5-5.5mm in coils with weight up to 1000kgs.
