Spring wire for garage gate
General Details
Application: for Garage Gate Spring
Material: High carbon steel
Diameter: 2.00mm-12.0mm
Specification: According to Standard DIN17223 (EN10270-1), BS5216, JIS3521; tensile strength commonly used
| Diameter(mm) | Tensile strength(N/mm2) |
| 2.00 | 1770-1970 |
| 2.50 | 1700-1900 |
| 3.00 | 1650-1850 |
| 4.00 | 1570-1770 |
| 5.00 | 1510-1710 |
| 5.60 | 1470-1670 |
| 7.10 | 1410-1610 |
| 8.50 | 1360-1560 |
| 9.50 | 1330-1530 |
| 10.00 | 1320-1520 |
| 11.80 | 1270-1471 |

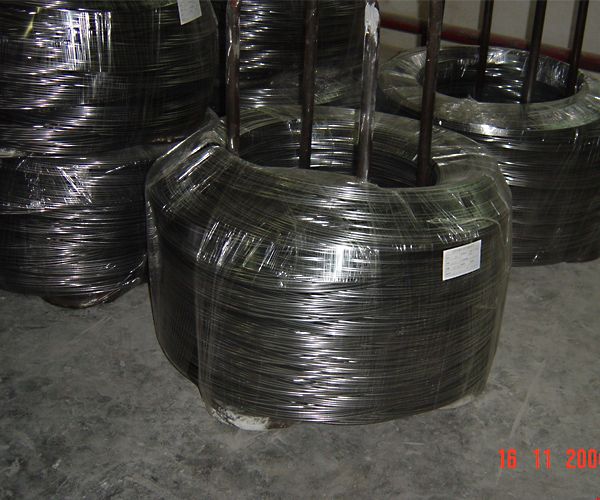

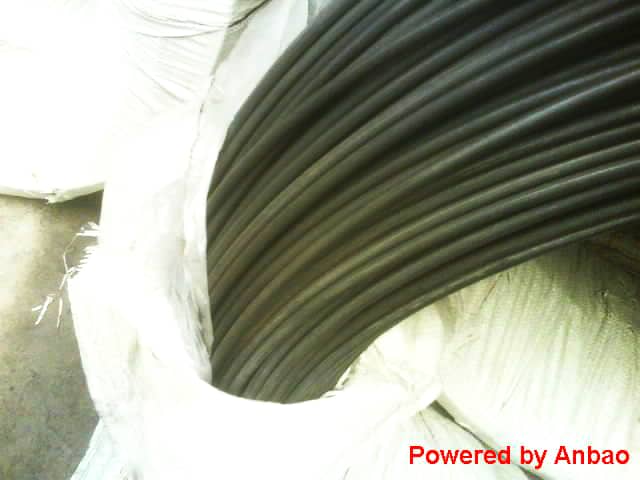

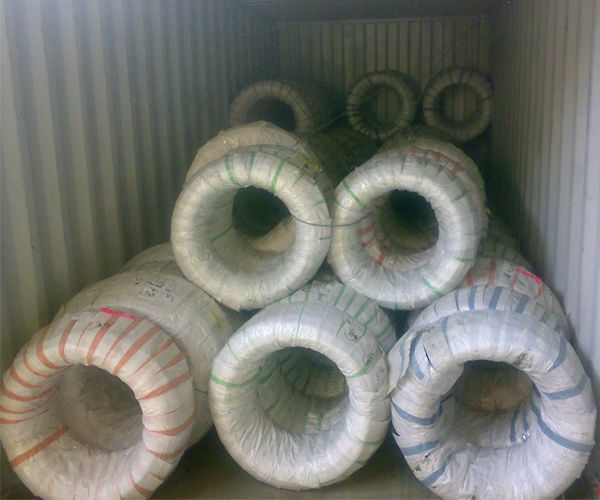

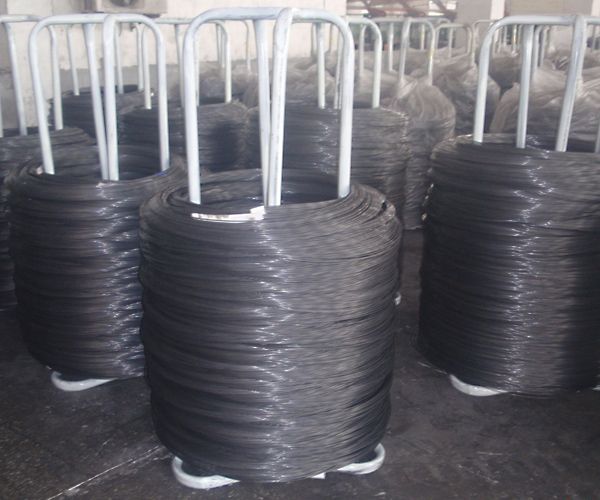

Packing: coils, or coils on spiders
All can be produced according to customers’ actual requirement.
