General Details

Our razor wire (concertina wire) products have been exported to Europe and the U.S.A., Southeast Asia, Middle East, Africa, also other countries and regions.

Razor wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Razor wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

1)    Concertina Wire

Concertina Wire is also known as crossed razor barbed wire. Two pieces of stainless steel razor wire or zinc-coated razor wire are bound together by clips to make it stronger.
The spiral intersecting barbed wire presents an intersecting shape after opening with beautiful feature and practicality.

2)    Single Coil Razor Wire

Single coil barbed tape wire is installed without clips, it runs in natural loops on walls or fencings. Single coil razor wire is ostless and can be easily installed

3)    Razor Flat Fence
Razor flat fence is one of our newly developed razor product (flat wrap).
Common sizes available for razor flat fence:
500mm x 15m
700mm x 15m
900mm x 15m

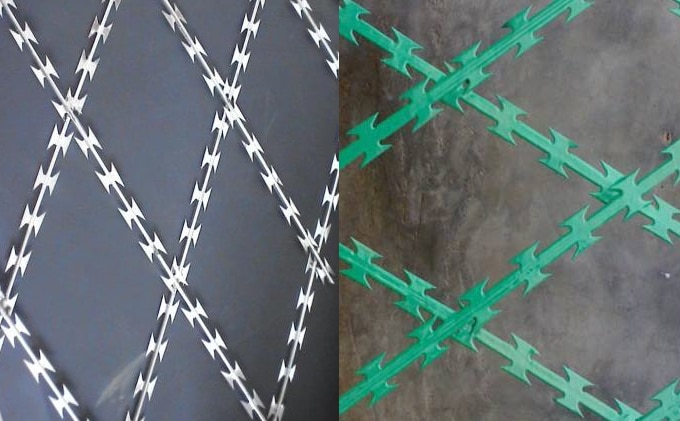

4)    Welded Razor Wire Mesh

Welded Razor Wire Mesh Fence is a new form of razor barbed wire for security. With blade, this kind of razor wire fence is very practical and it looks beautiful.
Razor wire mesh fence can be used as guarding fence, for doors and windows. It can also be used in military.
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request

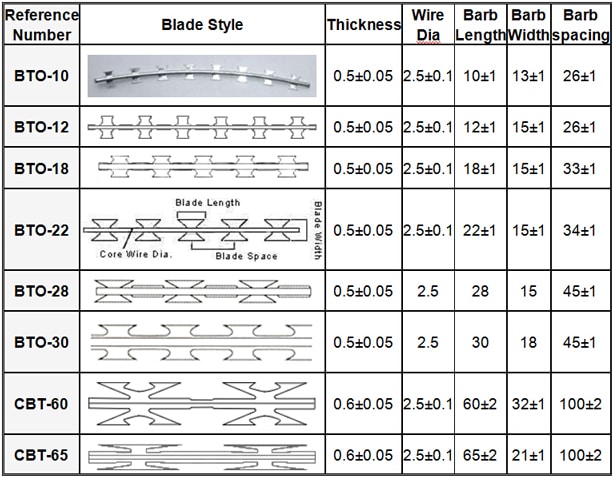

Razor Wire Specification:

Outside Diameter

No. of Loops Standard Length per Coil Type Notes
450mm 33 7-8M CBT-60.65 Single coil
500mm 56 12-13M CBT-60.65 Single coil
700mm 56 13-14M CBT-60.65 Single coil
960mm 56 14-15M CBT-60.65 Single coil
450mm 56 8-9M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
500mm 56 9-10M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 10-11M (3 CLIPS) BTO-10.12.18.22.28.30 Cross type
600mm 56 8-10M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
700mm 56 10-12M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
800mm 56 11-13M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
900mm 56 12-14M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
960mm 56 13-15M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type
980mm 56 14-16M (5 CLIPS) BTO-10.12.18.22.28.30 Cross type

Packing

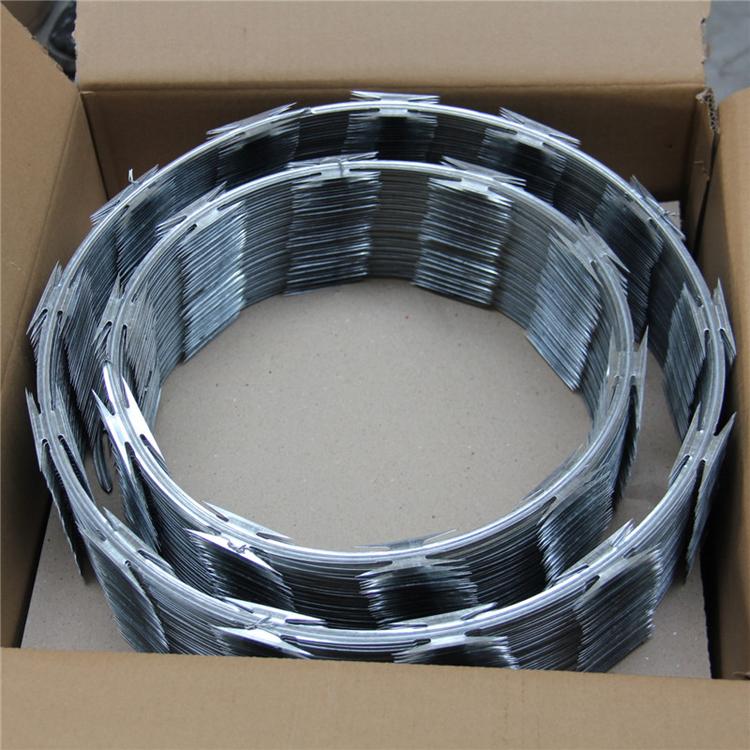

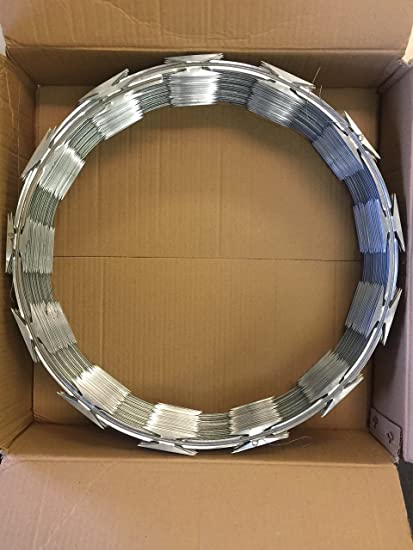

For the packing , we mainly supply two kind of packing : simple packing and carton packing.

1, For simple packing, inside is water proof paper and outside is weaven bags; sometimes we can load the container one coil by one coil and sometimes we can make the coils to big bundles and for loading easily.
Mainly for BTO-10,12,22,30 and CBT-25

2, For carton packing, it is mainly application to CBT-65,60 (450mm)

3, Speical kind of packing is also available

Notes:
Standard products are shown in the tables above, special specifications available on request.
Standard materials are either galvanized or stainless steel.
