Galvanized steel wire for armouring cable
Cable Armour Wire, CAW Wire, Wire for cable armouring, Armouring Cable Wire
1) Application: Hot dipped galvanized steel wire for cable armouring
2) Diameter: 0.90, 1.25, 1.60, 2.00, 2.50, 3.15, 4.00mm
3) Technical Info:
- Surface: hot-dipped zinc coated
- Tensile strength:340-500 N/mm2 for all sizes
- Elongation: Min. 10% for all sizes
|
Nominal Diameter mm |
Dia. Tolerance mm |
Min. Mass of Zinc Coating gr/ m² |
Elongation at 250mm gauge % min |
Tensile Strength N/mm² |
Resistance Ω/km max |
|
0.80 |
± 0.035 |
145 |
10 |
340-500 |
226 |
|
0.90 |
± 0.035 |
155 |
10 |
340-500 |
216.92 |
|
1.25 |
± 0.040 |
180 |
10 |
340-500 |
112.45 |
|
1.60 |
± 0.045 |
205 |
10 |
340-500 |
68.64 |
|
2.00 |
± 0.050 |
215 |
10 |
340-500 |
43.93 |
|
2.50 |
± 0.060 |
245 |
10 |
340-500 |
28.11 |
|
3.15 |
± 0.070 |
255 |
10 |
340-500 |
17.71 |
|
4.00 |
± 0.070 |
275 |
10 |
340-500 |
10.98 |
|
Coil ID (mm) : 350-500 |
|||||

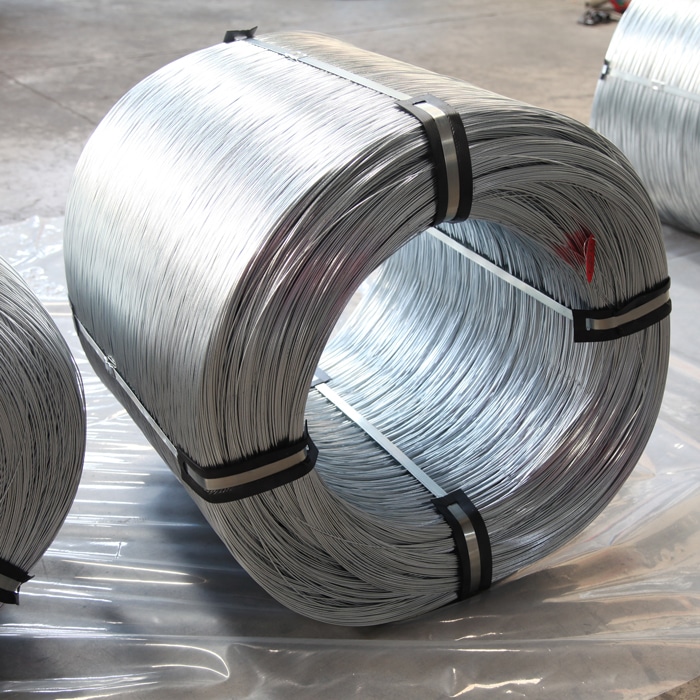

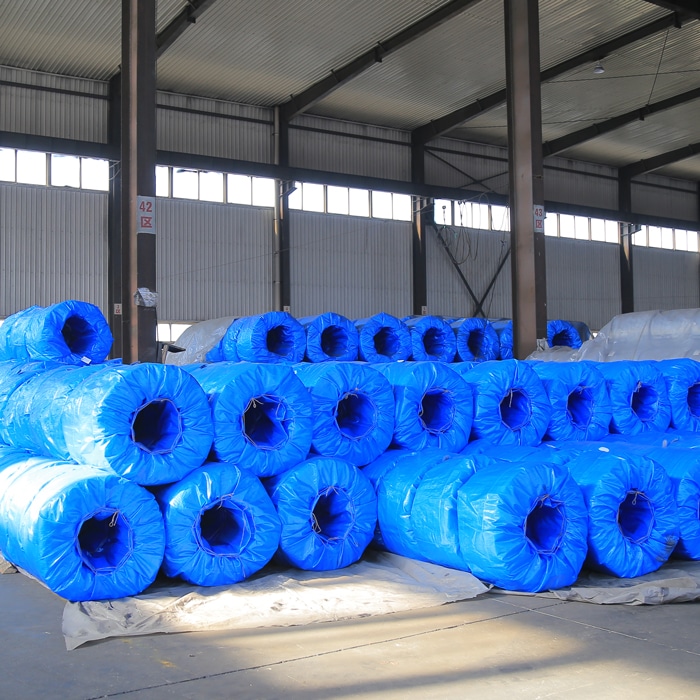

4) Packing: jumbo coil, Inner 4 metal strips and 4 D-ring with plastic bag and PE woven cloth outside.
5) Standard: according to BS EN10257-1, EN10244-2 (BS443, BS5467, BS1442)
6) All can be produced according to customers’ actual requirement.
