Galvanized Steel Tapes
Application: for cable armoring.
Finish: The surface of Galvanized steel tapes is free form scales, seams, Zinc flakes and other surface imperfection. The zinc coating smooth and continuous.
Thickness: 0.15 mm to 2.00 mm
Width: 4 mm to 1250 mm
Technical Specifications:
Tensile Strength: 28 to 50 kgf/mm2
Elongation: Minimum 10% on 250 mm gauge length.
Zinc Coating: Minimum 110 g/m2 (total weight on all four sides). However, this can be increased to suit customer’s requirements.
| PLAIN | SKIN PASSED | CORRUGATED | GALVANNEAL | |
| Thickness (mm) |
0.10 to 2.00 | 0.30 to 2.00 | 0.12 to 1.20 | 0.30 to 2.00 |
| Width (mm) |
Up to 1250 | Up to 1250 | 660, 762, 800, 900, 1050 | Up to 1250 |
| Cut-To-Length (mm) |
Up to 4500 | Up to 4500 | Up to 4100 ( 16″) | Up to 4500 |
| Surface Finish | Regular And minimum Spangles | Mate with Zero/minimum Spangles | Regular Spangles | Matte |
| Coating Mass (Gms/m2) |
80 to 300 | 80 to 300 | 80 to 300 | 80 to 300 |
| Grades | Soft/Lock Forming | EDD, DD & D (SPCEN, SPCD, SPCC) |
Roofing | EDD, DD&D |

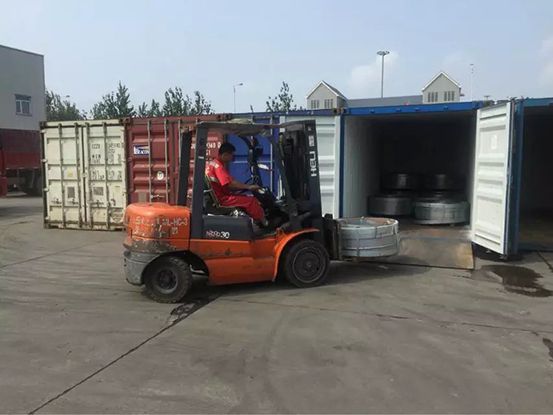

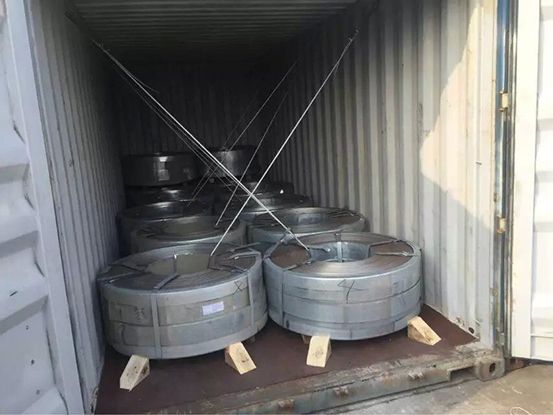

Packing: Galvanized steel coils are wrapped in strong water proof sea-worthy packing and are in palletized loads.
Other types of packing can be done as required, such as: the coil core with the cardboard tube inside.
Delivery Form: Galvanized Steel Tapes are supplied in continuous lengths in ribbon wound coils.
Coil Size: Inside Diameter- minimum 150 mm, Outside Diameter – Within 400-800.
Testing: Galvanized Steel Tapes are manufactured according to customer’s requirements and specifications.
Our products conform to the following standards:
- ASTM A90 BS 2989
- ASTM A93 IS 3975
- ASTM A459
