Full Locked Coil Rope

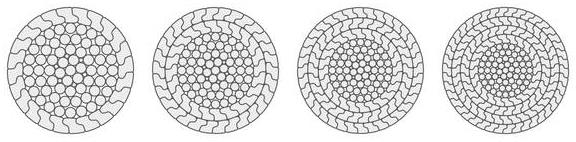

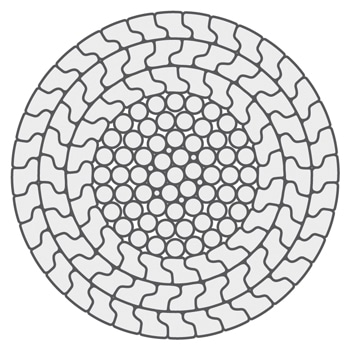

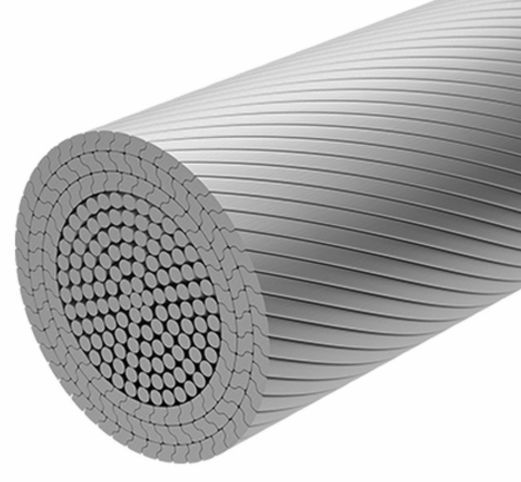

Full Locked Coil Steel ropes with spiral winding and hot dip galvanized wires, Z-shaped in the outer layers.
The Z shape of the wires prevents the penetration of external agents inside the cables.
This rope make is very resistant to corrosion and suitable for cable stayed and tensile structures.
| Rope Dia. |
Metallic cross section | Mass of rope per 100 m | Min breaking force | |
|---|---|---|---|---|
| mm | mm2 | kg | N | kgf |
| 32 | 681 | 560 | 101500 | 103470 |
| 36 | 862 | 710 | 128500 | 130990 |
| 40 | 1077 | 890 | 160500 | 163610 |
| 44 | 1303 | 1070 | 194500 | 198270 |
| 48 | 1551 | 1280 | 231500 | 235990 |
| 58 | 1841 | 1520 | 275000 | 280330 |
| 56 | 2136 | 1760 | 319000 | 325180 |
| 60 | 2452 | 2020 | 366000 | 373090 |
| 64 | 2789 | 2300 | 416500 | 424570 |
| 68 | 3149 | 2600 | 470000 | 479110 |
| 72 | 3530 | 2910 | 521000 | 531100 |
| 76 | 3933 | 3240 | 579000 | 590220 |
| 80 | 4358 | 3590 | 640500 | 652910 |
| 84 | 4805 | 3960 | 704500 | 718150 |
| 88 | 5274 | 4350 | 772000 | 786960 |
| 92 | 5764 | 4750 | 843000 | 859330 |
| 96 | 6276 | 5170 | 916500 | 934260 |
| 100 | 6890 | 5680 | 1005000 | 1024470 |
| 104 | 7452 | 6140 | 1086000 | 1107040 |
| 108 | 8037 | 6620 | 1170000 | 1192670 |
| 112 | 8643 | 7120 | 1257500 | 1281860 |
| 116 | 9271 | 7640 | 1348000 | 1374110 |
| 120 | 9922 | 8180 | 1441500 | 1469420 |
| 124 | 10594 | 8730 | 1538500 | 1568300 |
| 128 | 11289 | 9300 | 1638500 | 1670240 |
