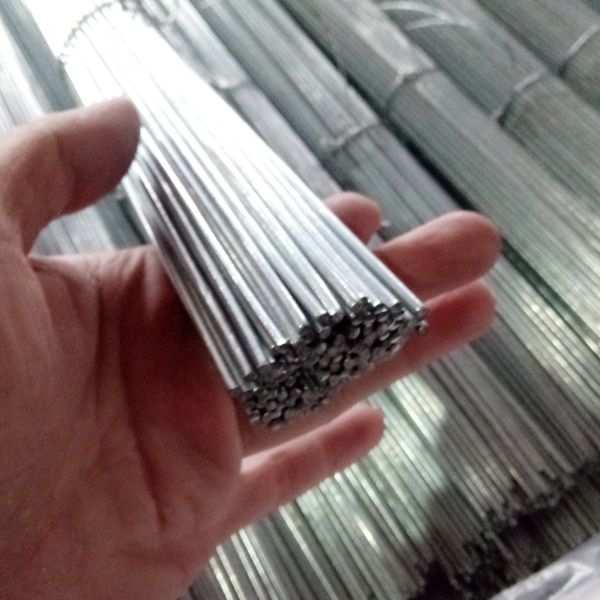

Ceiling Tile Hanger Wire

General Details

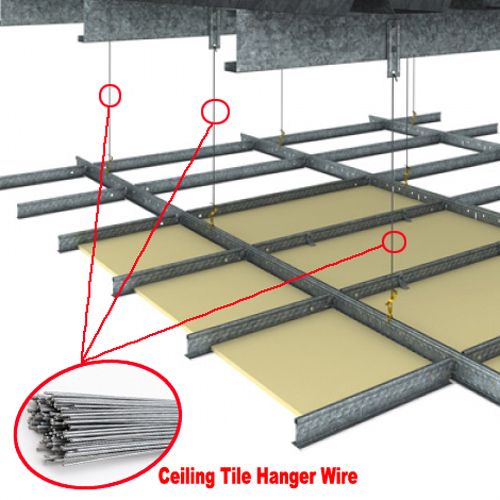

HANGER WIRE IS DESIGNED FOR OVERHEAD SUPPORT OF ACOUSTICAL AND GYPSUM PANEL CEILING.

Galvanized for corrosion resistance,

Available in 8, 9 and 12 gauge in numerous lengths, Straightening and cut

No Straightening Spiral Trace on Surface

The cut ends are smooth and burr-free.

Meets or exceeds ASTM A641, Class 1

HANGER WIRE IS CLEARLY LABELED AND CAREFULLY PACKED TO ENSURE THAT IT STAYS CLEAN, DRY AND EASY TO IDENTIFY.

  1. Available in master bundles, or conveniently packed in crates for easy loading or unloading
  2. Each bundle of hanger wire is labeled with tags containing product information

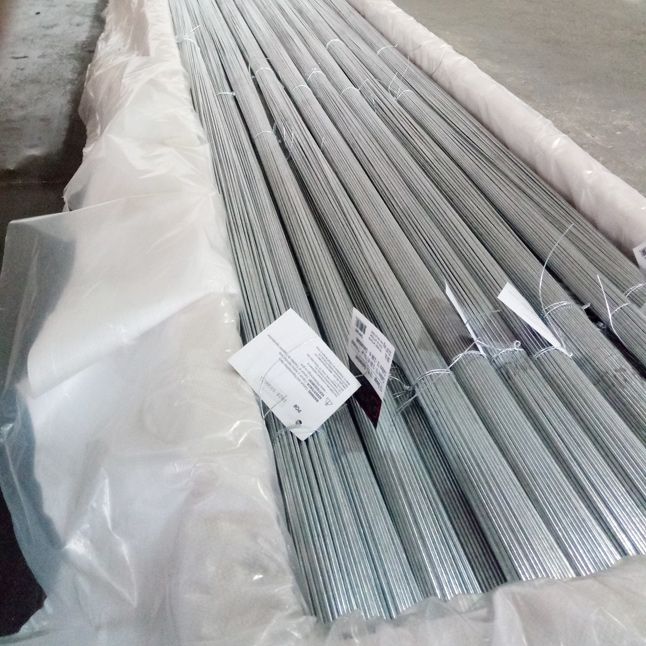

  3. Crates are lined with clean, clear poly sheeting for extra protection
  4. Hanger wire is enclosed in plastic in crates; plastic is sealed with plastic tape
  5. Product contained in crate with cross boards and steel strapping
  6. Crate stamped with master label and shipping mark.



Gauge Inch/mm Tolerance Length Weight of Coating

(Approximate Average)

12 gauge 0.106″

/

2.67 mm

±0.0024″

/

±0.06 mm

4 feet 13 microns
6 feet
8 feet
10 feet
12 feet
14 feet
16 feet
18 feet
20 feet



U Wire Product

16 gauge 0.0620″/1.57mm ±0.0015″/±0.04mm 45 inches 6 microns
18 gauge 0.0476″/1.21mm

Coil Product

Gauge Inch/mm
8 gauge 0.162″/4.11 mm
9 gauge 0.148″/3.76 mm
12 gauge 0.106″/2.67 mm



Tensile Strength
8 gauge 9 gauge 12 gauge 18 gauge
Tensile Strength (PSI) 65-75 KSI 55-65 KSI 55-65 KSI 55-65 KSI
Breaking Strength (PSI) 65-75 KSI 55-65 KSI 55-65 KSI 55-65 KSI
