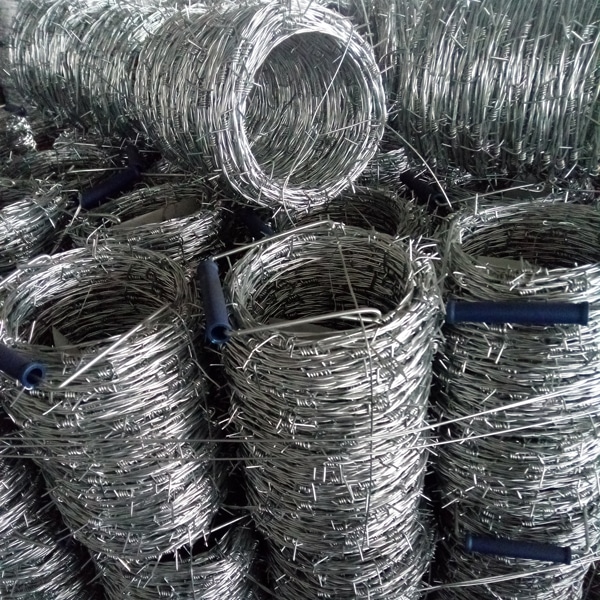

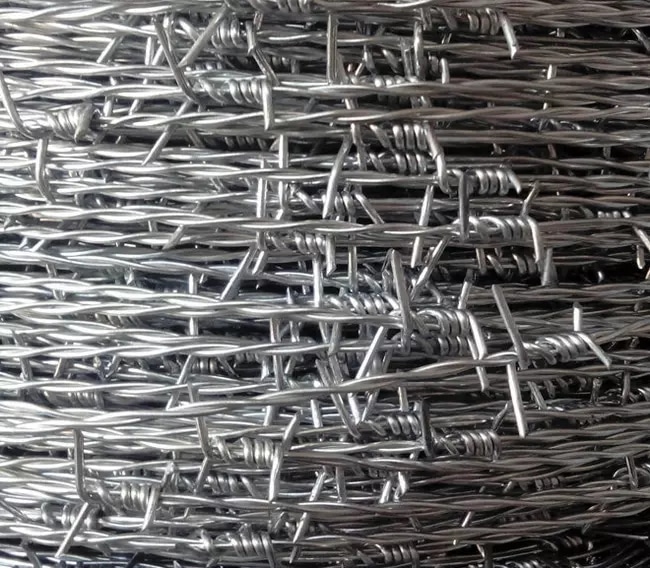

Barbed Wire
General Details
Materials: Galvanized steel wire, PVC coated iron wire in blue, green, yellow and other colors.
General Use: Barbed wire mainly serves in protecting of grass boundary, railway, highway, etc.
| Specification | ||||
| Type |
Wire Gauge |
Barb Distance (cm) | Barb Length (cm) | |
| Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire
|
10# x 12# | 7.5-15 | 1.5-3 | |
| 12# x 12# | ||||
| 12# x 14# | ||||
| 14# x 14# | ||||
| 14# x 16# | ||||
| 16# x 16# | ||||
| 16# x 18# | ||||

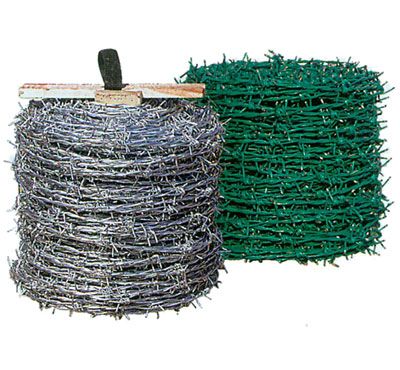

| PVC coated barbed wire;
PE barbed wire |
before coating | after coating | 7.5-15 | 1.5-3 |
| 1.0-3.5mm | 1.4-4.0mm | |||
| BWG11#-20# | BWG8#-17# | |||
| SWG11#-20# | SWG8#-17# | |||
| PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request | ||||

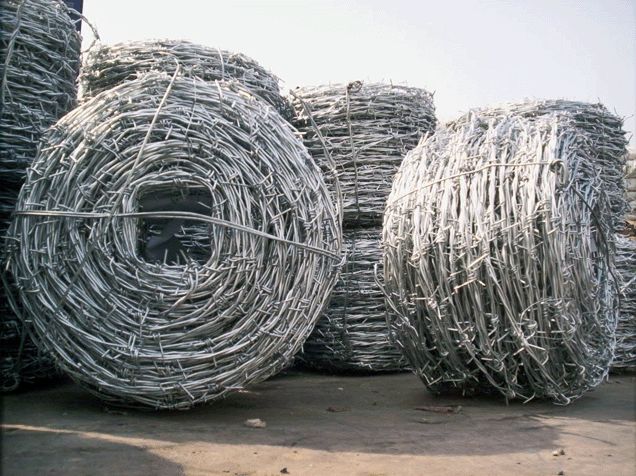

Packing: With wooden spool* on pallet, or Rolled without pallet.
*(A hole was bored in the Wooden spool’s center, allowing retailers to slip spools onto a horizontal bar for easy unrolling.)
