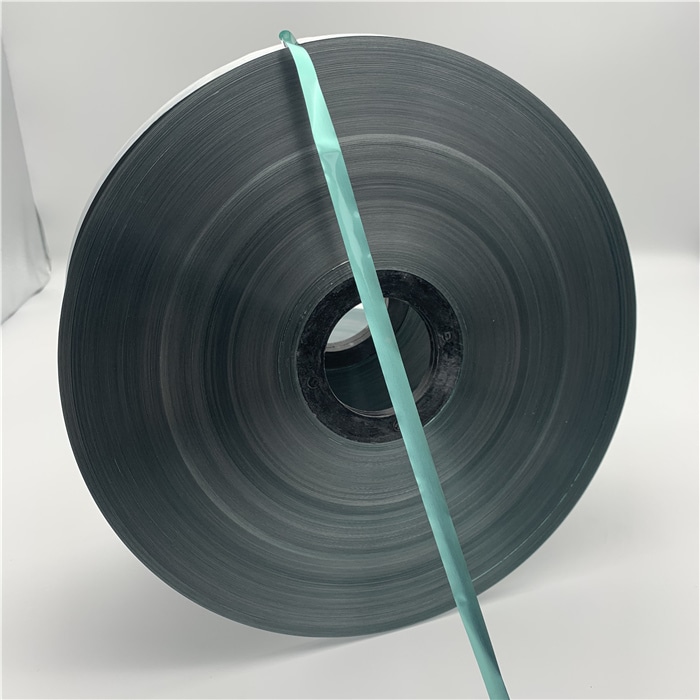

Al-PET film, Al Mylar Tape
Al-PET is a widly used insulation and shielding material in cable and wires. The film provides insulation and electromagnetic shielding. There is also 3 layer Al-PET-Al film, that could provide a electrical conducting surface on the film.
We are manufacturer and can laminate the foil film as your requirements. The thickness of aluminum layer, PET layer and color of it are all can be customized, the width, length or outer diameter can be customized too.
The Al-PET can be choose to packed in pad form, or reeled on to plastic spool, wooden spool, or a cardboard center.
Besides PET film, we can also laminate PP, LEPE, PI, PVC and other polymer films with metal foils like copper foil, aluminum foil. and they have different uses, for example, the Al-PI has a good performance in fire retardant and can be used as fire retardant shielding film.
Al-PET film
| Specification |
Thickness |
Total thickness |
Tensile strength |
Elongation
% |
|
15U
|
7/4/3
|
14±5
|
≥3
|
≥15
|
|
15U
|
7/6/3
|
15±3
|
≥6
|
≥35
|
|
20U
|
7/12/3
|
20±3
|
≥6
|
≥35
|
|
25U
|
7/15/3
|
25±3
|
≥6
|
≥35
|
|
30U
|
7/19/3
|
30±3
|
≥6
|
≥35
|
|
30U
|
7/18/3
|
30±5
|
≥6
|
≥35
|
|
38U
|
9/25/3
|
37±6
|
≥8
|
≥35
|
|
60U
|
35/25/3
|
63±8
|
≥6
|
≥35
|
|
75U
|
50/25/3
|
78±8
|
≥6
|
≥35
|
Al-PET-Al film
| Specifications | Al-PET-Al-Glue μm |
Thickness μm |
Tensile strength Kgf/mm2 |
Elongation |
| 35U | 7/15/7/3 | 35±5 | ≥4 | ≥30 |
| 50U | 7/30/7/9 | 53±5 | ≥4 | ≥30 |
