8×K19-PWRC(K), 8×K36-PWRC(K) Compacted Strand Wire Rope
- Rope type: 8×K19-PWRC(K), 8×K36-PWRC(K)

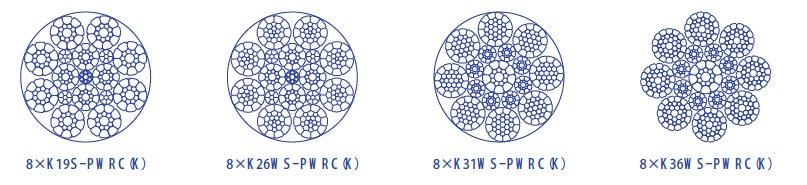

- Rope Construction 8×K19S-PWRC(K), 8×K26WS-PWRC(K), 8×K31WS-PWRC(K), 8×K36WS-PWRC(K);
- Application: Can be used as rigging for tower crane, mobile crane, grab bucket crane, cantilever crane, suitable for motionless and high breaking load required steel wire rope.
|
Rope Nominal Diameter |
Approx. Weight |
| 24 | 294 |
| 26 | 345 |
| 28 | 400 |
| 30 | 459 |
| 32 | 522 |
| 34 | 590 |
| 36 | 661 |
| 38 | 736 |
| 40 | 816 |
| 42 | 900 |
| 44 | 987 |
| 46 | 1080 |
| 48 | 1180 |
| 50 | 1280 |
| 52 | 1380 |
| 54 | 1490 |
| 56 | 1600 |
| 58 | 1720 |
| 60 | 1840 |
| Rope Nominal Diameter (mm) |
Nominal Tensile Strength (Mpa) | |||
| 1670 | 1770 | 1870 | 1960 | |
| Minimum Breaking Strength(kn) | ||||
| 20 | 294 | 312 | 329 | 345 |
| 22 | 356 | 377 | 398 | 417 |
| 24 | 423 | 449 | 474 | 497 |
| 26 | 497 | 526 | 556 | 583 |
| 28 | 576 | 611 | 645 | 676 |
| 30 | 661 | 701 | 741 | 776 |
| 32 | 752 | 797 | 843 | 883 |
| 34 | 849 | 900 | 951 | 997 |
| 36 | 952 | 1010 | 1070 | 1118 |
| 38 | 1060 | 1120 | 1190 | 1245 |
| 40 | 1180 | 1250 | 1320 | 1380 |
| 42 | 1300 | 1370 | 1450 | 1521 |
| 44 | 1420 | 1510 | 1590 | 1670 |
| 46 | 1550 | 1650 | 1740 | 1825 |
| 48 | 1690 | 1790 | 1900 | 1987 |
| 50 | 1840 | 1950 | 2060 | 2156 |
| 52 | 1990 | 2110 | 2220 | 2332 |
| 54 | 2140 | 2270 | 2400 | 2515 |
| 56 | 2300 | 2440 | 2580 | 2704 |
| 58 | 2470 | 2620 | 2770 | 2901 |
| 60 | 2650 | 2800 | 2960 | 3105 |
