8×K19, 8×K36 Compacted Strand Wire Rope
- Rope type: 8×K19, 8×K36

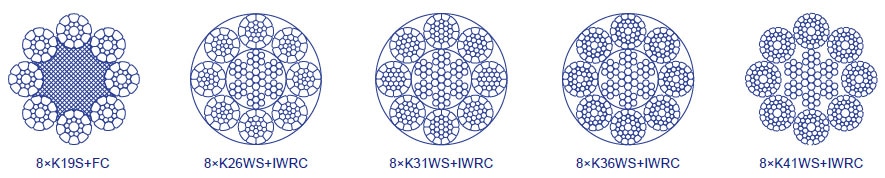

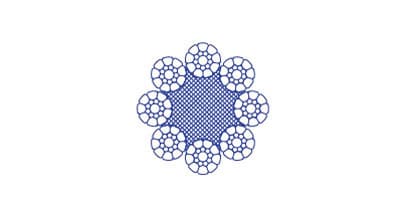

- Rope Construction: 8×K19S, 8×K26WS, 8×K31WS, 8×K36WS, 8×K41WS;
- Application: can be used as Variable amplitude rope on mobile crane, vessel crane and grab bucket crane, And can be used as hoisting rope on container crane, floating crane, portal crane and steel factory crane etc. Also be applicable to multi-multiplying power system with smaller hoisting height, double coiling block system with matched left-hand and right-hand pairs using for deep hoisting height.
|
Rope Nominal Diameter |
Approx. Weight |
|
| Fiber Core | Steel Core | |
| 16 | 104 | 127 |
| 18 | 131 | 160 |
| 20 | 162 | 198 |
| 22 | 196 | 240 |
| 24 | 233 | 285 |
| 26 | 274 | 335 |
| 28 | 318 | 388 |
| 30 | 365 | 446 |
| 32 | 415 | 507 |
| 34 | 468 | 572 |
| 36 | 525 | 642 |
| 38 | 585 | 715 |
| 40 | 648 | 792 |
| 42 | 714 | 873 |
| 44 | 784 | 958 |
| 46 | 857 | 1047 |
| 48 | 933 | 1140 |
| 50 | 1013 | 1238 |
| 52 | 1095 | 1338 |
| 54 | 1181 | 1443 |
| 56 | 1270 | 1552 |
| 58 | 1362 | 1665 |
| 60 | 1458 | 1782 |
| 62 | 1630 | 1830 |
| 64 | 1740 | 1950 |
| 66 | 1850 | 2080 |
| 68 | 1970 | 2210 |
| 70 | 1980 | 2430 |
| 72 | 2100 | 1711 |
| 74 | 2218 | 2711 |
| 76 | 2339 | 2859 |
| 78 | 2464 | 3012 |
|
Rope Nominal Diameter |
Nominal Tensile Strength (Mpa) |
|||||||
| 1670 | 1770 | 1870 | 1960 | |||||
|
Minimum Breaking Strength (kn) |
||||||||
| Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | Fiber Core | Steel Core | |
| 16 | 140 | 175 | 150 | 186 | 158 | 196 | 166 | 206 |
| 18 | 179 | 222 | 189 | 235 | 200 | 248 | 210 | 260 |
| 20 | 220 | 274 | 234 | 290 | 247 | 307 | 259 | 321 |
| 22 | 267 | 331 | 283 | 351 | 299 | 371 | 313 | 389 |
| 24 | 317 | 394 | 336 | 418 | 355 | 442 | 373 | 463 |
| 26 | 373 | 463 | 395 | 491 | 417 | 518 | 437 | 543 |
| 28 | 432 | 537 | 458 | 569 | 484 | 601 | 507 | 630 |
| 30 | 496 | 616 | 526 | 653 | 555 | 690 | 582 | 723 |
| 32 | 564 | 701 | 598 | 743 | 632 | 785 | 662 | 823 |
| 34 | 637 | 792 | 675 | 839 | 713 | 886 | 748 | 929 |
| 36 | 714 | 887 | 757 | 941 | 800 | 994 | 838 | 1041 |
| 38 | 796 | 989 | 843 | 1048 | 891 | 1107 | 934 | 1160 |
| 40 | 882 | 1096 | 935 | 1161 | 987 | 1227 | 1035 | 1286 |
| 42 | 972 | 1208 | 1030 | 1280 | 1089 | 1352 | 1141 | 1418 |
| 44 | 1067 | 1326 | 1131 | 1405 | 1195 | 1484 | 1252 | 1556 |
| 46 | 1166 | 1449 | 1236 | 1536 | 1306 | 1622 | 1369 | 1700 |
| 48 | 1270 | 1578 | 1346 | 1672 | 1422 | 1766 | 1490 | 1851 |
| 50 | 1378 | 1712 | 1460 | 1814 | 1543 | 1917 | 1617 | 2009 |
| 52 | 1490 | 1851 | 1579 | 1962 | 1669 | 2073 | 1749 | 2173 |
| 54 | 1607 | 1997 | 1703 | 2116 | 1799 | 2236 | 1886 | 2343 |
| 56 | 1728 | 2147 | 1832 | 2276 | 1935 | 2404 | 2028 | 2520 |
| 58 | 1854 | 2303 | 1965 | 2441 | 2076 | 2579 | 2176 | 2703 |
| 60 | 1984 | 2465 | 2103 | 2613 | 2222 | 2760 | 2328 | 2893 |
| 62 | 2120 | 2630 | 2250 | 2790 | 2370 | 2950 | — | — |
| 64 | 2260 | 2800 | 2390 | 2970 | 2530 | 3140 | — | — |
| 66 | 2400 | 2980 | 2540 | 3160 | 2690 | 3340 | — | — |
| 68 | 2550 | 3170 | 2700 | 3360 | 2850 | 3550 | — | — |
| 70 | 2700 | 3360 | 2860 | 3560 | 3020 | 3760 | — | — |
| 72 | 2857 | 3549 | 3028 | 3762 | 3199 | 3975 | — | — |
| 74 | 3018 | 3749 | 3199 | 3974 | 3379 | 4198 | — | — |
| 76 | 3183 | 3955 | 3374 | 4192 | 3564 | 4428 | — | — |
| 78 | 3353 | 4166 | 3554 | 4415 | 3754 | 4665 | — | — |
