8X37(b) Round Strand Wire Rope

  • Rope type: 8X37(b)

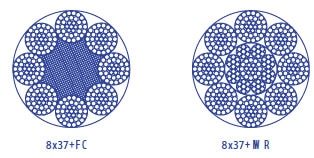

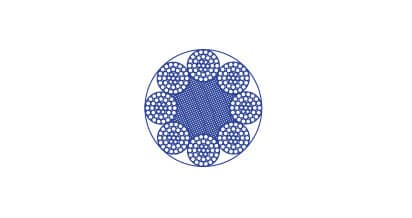

  • Rope Construction: 8X37
  • Application: It is used in large hoisting crane, ships, offshore installations and salvage, etc.

Rope Nominal Diameter
(mm)

Approx. Weight
(kg/100m)

Fiber Core Steel Core
60 1280 1510
62 1370 1610
64 1460 1720
66 1550 1830
68 1650 1940
70 1740 2060
72 1850 2180
74 1950 2300
76 2060 2430
78 2170 2560
80 2280 2690
82 2390 2820
84 2510 2960
86 2630 3110



Rope Nominal Diameter
(mm)

Nominal Tensile Strength (MPa)

1570 1670 1770 1870 1960

Minimum Breaking Strength (kn)

Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core Fiber Core Steel Core
60 1480 1750 1570 1860 1660 1980 1760 2090 1840 2190
62 1580 1870 1680 1990 1780 2110 1880 2230 1970 2340
64 1680 1990 1790 2120 1890 2250 2000 2370 2100 2490
66 1780 2120 1900 2260 2010 2390 2130 2530 2230 2650
68 1890 2250 2020 2390 2140 2540 2260 2680 2370 2810
70 2010 2380 2140 2540 2260 2690 2390 2840 2510 2980
72 2120 2520 2260 2680 2390 2840 2530 3010 2650 3150
74 2240 2670 2390 2830 2530 3000 2670 3170 2800 3330
76 2370 2810 2520 2990 2670 3170 2820 3350 2950 3510
78 2490 2960 2650 3150 2810 3340 2970 3530 3110 3700
80 2620 3110 2790 3310 2960 3510 3120 3710 3270 3890
82 2760 3270 2930 3480 3110 3690 3280 3900 3440 4090
84 2890 3430 3080 3650 3260 3870 3440 4090 3610 4290
86 3030 3600 3220 3830 3420 4060 3610 4290 3780 4490

Note: Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope x 1.300 (Fiber core) or 1.448(steel core).
