6X19(b) Round Strand Wire Rope

Rope type:6X19(b)

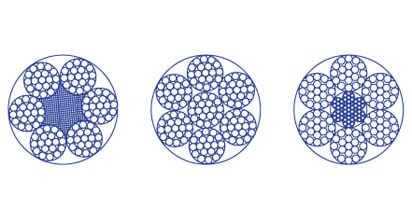

Rope Construction: 6×19+FC 6×19+IWS 6×19+IWR
Application: It is used in a variety of lifting, hoisting, and traction equipment

Rope Nominal Diameter (mm)	Nominal Tensile Strength (MPa)
	1570		1670		1770		1870
	Minimum Breaking Strength (kN)
	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core
9	39	42.2	41.6	44.9	44	47.6	46.5	50.3
10	48.2	52.1	51.3	55.4	54.4	58.8	57.4	62.1
11	58.3	63.1	62	67.1	65.8	71.1	69.5	75.1
12	69.4	75.1	73.8	79.8	78.2	84.6	82.7	89.4
13	81.5	88.1	86.6	93.7	91.8	99.3	97	105
14	94.5	102	100	109	107	115	113	122
16	123	133	131	142	139	150	147	159
18	156	169	166	180	176	190	186	201
20	193	208	205	222	217	235	230	248
22	233	252	248	268	263	284	278	300
24	278	300	295	319	313	338	331	358
26	326	352	346	375	367	397	388	420
28	378	409	402	435	426	461	450	487
30	434	469	461	499	489	529	517	559
32	494	534	525	568	557	602	588	636
34	557	603	593	641	628	679	664	718
36	625	676	664	719	704	762	744	805
38	696	753	740	801	785	849	829	896
40	771	834	820	887	869	940	919	993
42	850	919	904	978	959	1040	1010	1100
44	933	1010	993	1070	1050	1140	1110	1200
46	1020	1100	1080	1170	1150	1240	1210	1310

Note ： Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope × 1.226(fiber Core) or 1.321(steel core).
