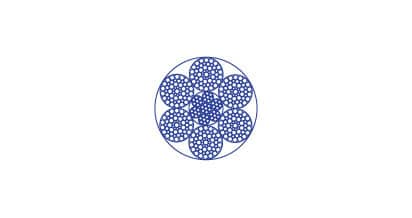

6×19(a), 6×37(a) Round Strand Wire Rope

Rope type: 6×19 (a), 6×37 (a)

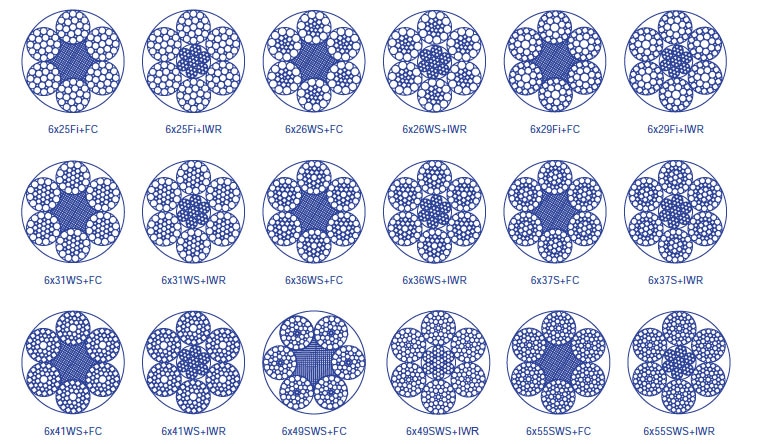

Rope Construction 6×25Fi+FC, 6×25Fi+IWR, 6×26WS+FC, 6×26WS+IWR, 6×29Fi+FC, 6×29Fi+IWR, 6×31WS+FC, 6×31WS+IWR, 6×36WS+FC, 6×36WS+IWR, 6×37S+FC, 6×37S+IWR, 6×41WS+FC, 6×41WS+IWR, 6×49SWS+FC, 6×49SWS+IWR, 6×55SWS+FC, 6×55SWS+IWR;
Application: 6×25Fi: It is used in blast furnace hoisting, petroleum drilling, heavy-duty crane (steel core), heavy lifting and other important usage of crane, steel heat transfer machine (steel core), Shipping handling.
6×26WS: It is used in blast furnace hoisting, petroleum drilling, heavy lifting and other important usage of crane.
6×29Fi: It is used in blast furnace hoisting, petroleum drilling, heavy lifting and other important uses of crane, steel heat transfer machine (steel core), Shipping handling.
6×31WS: It is used in blast furnace hoisting, petroleum drilling, heavy lifting and other important uses of crane, steel heat transfer machine (steel core), Shipping handling, tow boat, cargo net.
6×36WS: It is used in balance shaft rope (only interactive twist), blast furnace hoisting, petroleum drilling, heavy lifting and other important uses of crane, steel heat transfer machine (steel core), Shipping handling, tow boat, cargo net, salvage
6×37S: It is used in balance shaft rope (only interactive twist), heavy lifting and other important uses of crane, steel heat transfer machine (steel core), Shipping handling, tow boat, cargo net, salvage.
6×49SWS, 6×55SWS: It is used in heavy lifting and other important usage of crane, salvage.

Rope Nominal Diameter (mm)	Approx. Weight (kg/100m)
Rope Nominal Diameter (mm)	Natural Fiber Core	Synthetic Fiber Core	Steel Core
16	97.3	95	107
18	123	120	135
20	152	148	167
22	184	180	202
24	219	214	241
26	257	251	283
28	298	291	328
30	342	334	376
32	389	380	428
34	439	429	483
36	492	481	542
38	549	536	604
40	608	594	669
42	670	654	737
44	736	718	809
46	804	785	884
48	876	855	963
50	950	928	1040
52	1030	1000	1130
54	1110	1080	1220
56	1190	1160	1310
58	1280	1250	1410
60	1370	1340	1500
62	1470	—	1610
64	1570	—	1710
66	1670	—	1820
68	1770	—	1930
70	1880	—	2050
72	1990	—	2170
74	2100	—	2290
76	2210	—	2410
78	2330	—	2540
80	2450	—	2680
82	2580	—	2810
84	2700	—	2950
86	2830	—	3090
88	2970	—	3240
90	3100	—	3390
92	3240	—	3540
94	3380	—	3690
96	3530	—	3850
98	3680	—	4010
100	3830	—	4180

Rope Nominal Diameter (mm)	Nominal Tensile Strength (MPa)
	1570		1670		1770		1870		1960		2160
	Minimum Breaking Strength (kN)
	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core	Fiber Core	Steel Core
16	133	143	141	152	150	161	158	170	166	179	182	197
18	168	181	179	193	189	204	200	216	210	226	231	249
20	207	224	220	238	234	252	247	266	259	279	285	308
22	251	271	267	288	283	305	299	322	313	338	345	372
24	298	322	317	342	336	363	355	383	373	402	411	443
26	350	378	373	402	395	426	417	450	437	472	482	520
28	406	438	432	466	458	494	484	522	507	547	559	603
30	466	503	496	535	526	567	555	599	582	628	642	692
32	531	572	564	609	598	645	632	682	662	715	730	787
34	599	646	637	687	675	728	713	770	748	807	824	889
36	671	724	714	770	757	817	800	863	838	904	924	997
38	748	807	796	858	843	910	891	961	934	1010	1030	1110
40	829	894	882	951	935	1010	987	1070	1030	1120	1140	1230
42	914	986	972	1050	1030	1110	1090	1170	1140	1230	1260	1360
44	1000	1080	1070	1150	1130	1220	1190	1290	1250	1350	1380	1490
46	1100	1180	1170	1260	1240	1330	1310	1410	1370	1480	1510	1630
48	1190	1290	1270	1370	1350	1450	1420	1530	1490	1610	1640	1770
50	1300	1400	1380	1490	1460	1580	1540	1660	1620	1740	1780	1920
52	1400	1510	1490	1610	1580	1700	1670	1800	1750	1890	1930	2080
54	1510	1630	1610	1730	1700	1840	1800	1940	1890	2030	2080	2240
56	1620	1750	1730	1860	1830	1980	1940	2090	2030	2190	2240	2410
58	1740	1880	1850	2000	1960	2120	2080	2240	2180	2350	2400	2590
60	1870	2010	1980	2140	2100	2270	2220	2400	2330	2510	2570	2770
62	1990	2150	2120	2290	2250	2420	2370	2560	2490	2680	—	—
64	2120	2290	2260	2440	2390	2580	2530	2730	2650	2860	—	—
66	2260	2430	2460	2590	2540	2740	2690	2900	2820	3040	—	—
68	2400	2580	2550	2750	2700	2910	2850	3080	2990	3230	—	—
70	2540	2740	2700	2910	2860	3090	3020	3260	3170	3420	—	—
72	2690	2900	2860	3080	3030	3270	3200	3450	3350	3620	—	—
74	2840	3060	3020	3260	3200	3450	3380	3650	3540	3820	—	—
76	2990	3230	3180	3430	3370	3640	3560	3850	3740	4030	—	—
78	3150	3400	3350	3620	3550	3830	3750	4050	3940	4250	—	—
80	3320	3580	3530	3800	3740	4030	3950	4260	4140	4470	—	—
82	3480	3760	3710	4000	3930	4240	4150	4480	4350	4690	—	—
84	3660	3940	3890	4190	4120	4450	4350	4700	4560	4920	—	—
86	3830	4130	4080	4400	4320	4660	4560	4920	4780	5160	—	—
88	4010	4330	4270	4600	4520	4880	4780	5160	5010	5400	—	—
90	4200	4530	4460	4820	4730	5100	5000	5390	5240	5650	—	—
92	4390	4730	4660	5030	4940	5330	5220	5630	5470	5910	—	—
94	4580	4940	4870	5250	5160	5570	5450	5890	5720	6170	—	—
96	4770	5150	5080	5480	5380	5810	5690	6140	5960	6430	—	—
98	4980	5370	5290	5710	5610	6050	5930	6390	6200	6700	—	—
100	5180	5590	5510	5950	5840	6300	6170	6660	6470	6980	—	—

Note: Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope X 1.226(fiber Core) or 1.321(steel core), thereinto, 6X37S fiber core is 1.191, steel core is 1.283.
