6VX37S+FC Shaped Strand Wire Rope
- Rope type: 6VX37

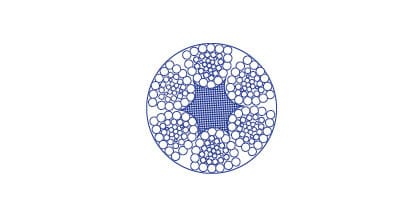

- Rope Construction: 6VX37S+FC
- Application: used in sub-vertical lifting, blast furnace hoisting, open slopes winch and excavator.
|
Rope Nominal diameter |
Approx. weight (kg/100m) |
|
| Natural fiber core | Synthetic fiber core | |
| 32 | 427 | 419 |
| 34 | 482 | 473 |
| 36 | 541 | 530 |
| 38 | 602 | 590 |
| 40 | 667 | 654 |
| 42 | 736 | 721 |
| 44 | 808 | 792 |
| 46 | 883 | 865 |
| 48 | 961 | 942 |
| 50 | 1040 | 1020 |
| 52 | 1130 | 1110 |
|
Rope Nominal diameter |
Nominal Tensile strength (Mpa) |
|||
| 1670 | 1770 | 1870 | 1960 | |
|
Minimum breaking strength (kn) |
||||
| Fiber Core | Fiber Core | Fiber Core | Fiber Core | |
| 32 | 634 | 672 | 710 | 744 |
| 34 | 716 | 759 | 802 | 840 |
| 36 | 803 | 851 | 899 | 942 |
| 38 | 894 | 948 | 1000 | 1050 |
| 40 | 991 | 1050 | 1110 | 1160 |
| 42 | 1090 | 1160 | 1220 | 1280 |
| 44 | 1200 | 1270 | 1340 | 1410 |
| 46 | 1310 | 1390 | 1470 | 1540 |
| 48 | 1430 | 1510 | 1600 | 1670 |
| 50 | 1550 | 1640 | 1730 | 1820 |
| 52 | 1670 | 1770 | 1870 | 1970 |
Note: Steel wire min. aggregate breaking strength = Min. breaking strength of steel wire rope ×1.191.
