35W×K7 Compacted Strand Wire Rope
- Rope type: 35W×K7

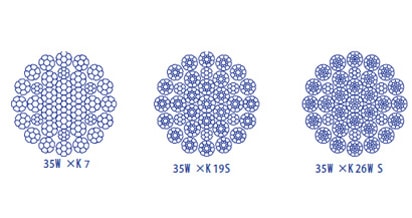

- Rope Construction: 35W×K7, 35W×K19S, 35W×K26WS;
- Application: can be used in mobile crane, vessel crane, tower crane, cantilever crane, bridge crane, pile driver, main hoisting rope for rotary drilling rig. It is applicable to the condition which can free rotation on one side and deep hoisting height.
|
Rope Nominal Diameter |
Approx. Weight |
| 14 | 100 |
| 16 | 131 |
| 18 | 165 |
| 20 | 204 |
| 22 | 247 |
| 24 | 294 |
| 26 | 345 |
| 28 | 400 |
| 30 | 459 |
| 32 | 522 |
| 34 | 590 |
| 36 | 661 |
| 38 | 736 |
| 40 | 816 |
| 42 | 900 |
| 44 | 987 |
| 46 | 1080 |
| 48 | 1180 |
| 50 | 1280 |
| 52 | 1380 |
| 54 | 1490 |
| 56 | 1600 |
| 58 | 1720 |
| 60 | 1840 |
|
Rope Nominal Diameter |
Nominal Tensile Strength (Mpa) |
||||
| 1570 | 1670 | 1770 | 1870 | 1960 | |
|
Minimum Breaking Strength(kn) |
|||||
| 14 | 126 | 134 | 142 | 150 | 158 |
| 16 | 165 | 175 | 186 | 196 | 206 |
| 18 | 209 | 222 | 235 | 248 | 260 |
| 20 | 257 | 274 | 290 | 307 | 321 |
| 22 | 312 | 331 | 351 | 371 | 389 |
| 24 | 371 | 394 | 418 | 442 | 463 |
| 26 | 435 | 463 | 491 | 518 | 543 |
| 28 | 505 | 537 | 569 | 601 | 630 |
| 30 | 579 | 616 | 653 | 690 | 723 |
| 32 | 659 | 701 | 743 | 785 | 823 |
| 34 | 744 | 792 | 839 | 886 | 929 |
| 36 | 834 | 887 | 941 | 994 | 1040 |
| 38 | 930 | 989 | 1050 | 1110 | 1160 |
| 40 | 1030 | 1100 | 1160 | 1230 | 1290 |
| 42 | 1140 | 1210 | 1280 | 1350 | 1420 |
| 44 | 1250 | 1330 | 1400 | 1480 | 1560 |
| 46 | 1360 | 1450 | 1540 | 1620 | 1700 |
| 48 | 1480 | 1580 | 1670 | 1770 | 1850 |
| 50 | 1610 | 1710 | 1810 | 1920 | 2010 |
| 52 | 1740 | 1850 | 1960 | 2070 | 2170 |
| 54 | 1880 | 2000 | 2120 | 2240 | 2340 |
| 56 | 2020 | 2150 | 2280 | 2400 | 2520 |
| 58 | 2170 | 2300 | 2440 | 2580 | 2700 |
| 60 | 2320 | 2460 | 2610 | 2760 | 2890 |
