1X61 Strand Wire Rope Round
- Rope Type: Single strand wire rope

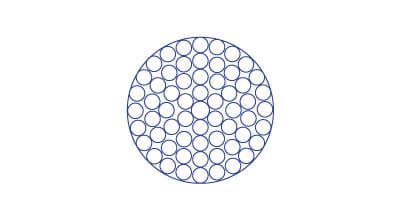

- Rope Construction: 1X61
- Application: It is used in large-scale field structure parts,
suspension cables, tension tower - Modulus of Elasticity: 150GPa
| Rope Nominal Diameter (mm) | Approx. Nominal Weight (kg/100m) | Nominal Metal cross sectional area (mm 2) |
| 20 | 193 | 233 |
| 22 | 234 | 282 |
| 24 | 278 | 335 |
| 26 | 327 | 393 |
| 28 | 379 | 456 |
| 29 | 406 | 489 |
| 30 | 435 | 524 |
| 32 | 495 | 596 |
| 34 | 558 | 673 |
| 35 | 592 | 713 |
| 36 | 626 | 754 |
| 38 | 698 | 840 |
| 40 | 773 | 931 |
| 42 | 852 | 1030 |
| 44 | 935 | 1130 |
| 45 | 978 | 1180 |
| 46 | 1020 | 1230 |
| 48 | 1110 | 1340 |
| 50 | 1210 | 1450 |
| 51 | 1260 | 1510 |
| 52 | 1310 | 1570 |
| 54 | 1410 | 1700 |
|
Rope Nominal Diameter (mm) |
Nominal Tensile Strength MPa |
||
| 1570 | 1670 | 1770 | |
| Minimum Breaking Strength (kN) | |||
| 20 | 322 | 342 | 363 |
| 22 | 389 | 414 | 439 |
| 24 | 463 | 493 | 522 |
| 26 | 544 | 578 | 613 |
| 28 | 630 | 670 | 711 |
| 29 | 676 | 719 | 762 |
| 30 | 724 | 770 | 816 |
| 32 | 823 | 876 | 928 |
| 34 | 929 | 988 | 1050 |
| 35 | 985 | 1047 | 1110 |
| 36 | 1040 | 1108 | 1170 |
| 38 | 1160 | 1235 | 1310 |
| 40 | 1290 | 1368 | 1450 |
| 42 | 1420 | 1508 | — |
| 44 | 1560 | 1655 | — |
| 45 | 1630 | — | — |
| 46 | 1700 | — | — |
| 48 | 1850 | — | — |
| 50 | 2010 | — | — |
| 51 | 2090 | — | — |
| 52 | 2170 | — | — |
| 54 | 2340 | — | — |
