1X37 Round Strand Wire Rope
- Rope Type: Single strand wire rope

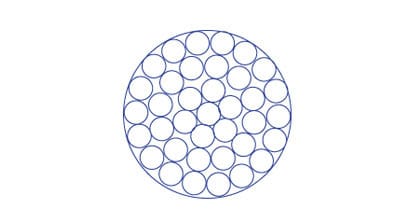

- Rope Construction: 1X37
- Application: It is used in large-scale field structure parts, suspension cables, tension tower .
- Modulus of Elasticity: 150GPa
|
Rope Nominal Diameter (mm) |
Approx. Nominal Weight (kg/100m) |
Nominal Metal cross sectional area |
|
14 |
94.8 |
114 |
|
14.5 |
102 |
123 |
|
16 |
124 |
149 |
|
18 |
157 |
189 |
|
19 |
175 |
210 |
|
20 |
193 |
233 |
|
22 |
234 |
282 |
|
24 |
279 |
336 |
|
26 |
327 |
394 |
|
28 |
379 |
457 |
|
29 |
407 |
490 |
|
30 |
435 |
524 |
|
32 |
495 |
597 |
|
34 |
559 |
674 |
|
35 |
593 |
714 |
|
36 |
627 |
755 |
|
38 |
698 |
842 |
|
40 |
774 |
932 |
|
42 |
853 |
1030 |
|
Rope Nominal Diameter (mm) |
Nominal Tensile Strength MPa |
||
|
1570 |
1670 |
1770 |
|
|
Minimum Breaking Strength (kN) |
|||
|
14 |
158 | 168 | 178 |
|
14.5 |
169 | 180 | 191 |
|
16 |
206 | 219 | 232 |
|
18 |
261 | 278 | 294 |
|
19 |
291 | 309 | 328 |
|
20 |
322 | 343 | 363 |
|
22 |
390 | 415 | 439 |
|
24 |
464 | 493 | 523 |
|
26 |
544 | 579 | 614 |
|
28 |
631 | 672 | 712 |
|
29 |
677 | 720 | 763 |
|
30 |
725 | 771 | 817 |
|
32 |
824 | 877 | 930 |
|
34 |
931 | 990 | — |
|
35 |
986 | — | — |
|
36 |
1040 | — | — |
|
38 |
1160 | — | — |
|
40 |
1290 | — | — |
|
42 |
1420 | — | — |
